Overview
MDS-EOS is terminal optical transmission equipment provides a STM-1 interface and one 10/100BASE-TX interface, the Ethernet data packets through the package can be directly deliver to SDH / SONET payloads, simply and quickly realize the long-distance and high-speed Internet connecting based on SDH. It may widely apply in the telecommunication and various operators' network and so on.
Features
◆ High reliability,In accordance with STM-1 G.707, G.811, G.812, IEEE802.3u standard.
◆ Suitable for SDH and ATM 155.52 Mbps interface interconnection.
◆ Provide a management port for centralized monitoring and supporting system upgrade;
◆ Supports local and remote loop-back on electrical or optical interface for system diagnostic.
◆ Provide the STM-1 and 10/100Base-Tx ports;;
◆ The bandwidth is 100M maximum.
◆ Standard SDH, high quality and proper price;
Specifications
1、Optical Port
Data rate: 155.520Mbps
Wavelength:1310/1550nm
Connector：SC/FC
Standard: comply with ITU-T G.707; G.811, G.812;
2、Ethernet Port
Data rate：10/100Mbps
Connector：RJ45
Standard: comply with IEEE 802.3
3、Power Supply Voltage: AC 220V / DC﹣48V
4、Power consumption: ≤10W
5、Environment Operating temperature: 0℃～45℃
6、Storage temperature:﹣20℃～﹢80℃
7、Relative humidity: 5%～90%, non condensation
8、Weight 0.4Kg
9、Size: 200mm(W)×145mm(L)×45mm(H)

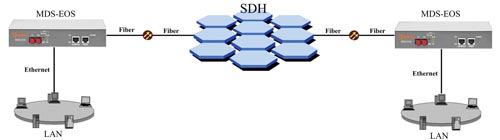

Typical Application
|
