Overview
MFP2000 Optical Line Protection System which can provide a kind of protection solution that ensures the security of optical line system. It could make us directly communicate without node when the optional equipment broke down or out of power to make sure normal communication in the whole telecommunication system. It is widely used in Optical Line Protection System like PDH,SDH system, C/DWDM system, electric telecommunication exclusive net as well as CATV optical net.
Features
¡¡¡ô Providing bypass Line Protection System
¡¡¡ô No optical bypass and electric loss bypass
¡¡¡ô No optical bypass immediately or delay is optional
¡¡¡ô Switch time shortly, the normal switch time is 3-15 ms
¡¡¡ô Provide a serial dip switch which can indicate work channel, set control mode etc
¡¡¡ô Internal power supply,support AC+DC mode
¡¡¡ô It is a low loss, high reliability device;
¡¡¡ô Complete working status indication
Specifications
1¡¢Optical Port
¡¡ Working wavelength: 850¡À50nm,1310¡À50nm, 1550¡À50nm
Fiber interface: FC
Return loss: ¡Ý55dB
Polarization loss: ¡Ü0.05dB
Wavelength loss: ¡Ü0.1dB
Insertion loss: <1.5
2¡¢Working environment
Temperature: -5¡æ¡«+45¡æ
Relative humidity: 90%£¨+30¡æ£©
3¡¢Power dissipation:<10W
4¡¢Size: 1U,19inch

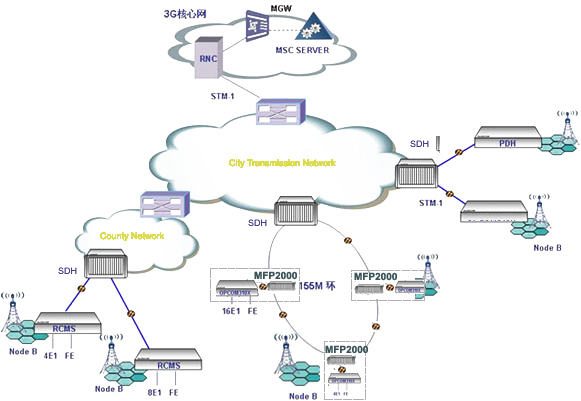

Typical Application
|
