MU714GH series 4GE+ CATV Dual Fiber GPON ONT

Brief Views

ONT MU714GH series (4GE+RF) is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability ,QoS guarantee, comprehensive management and flexible networking construction, etc.ONTMU714GH series fully compatible with ITU-T G.984 technology standard.

It adopts dual fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service. It also have a HFC optical port, received the CATV optical signals and convert into electric CATV signals.

ONT MU714GH series has 1 PON port , 1 HFC optical port, four 10/100/1000BASE-T ports and one CATV output.

Functional Feature

n Full compatible with ITU-T G.984

n Support four GE auto-adapting Ethernet ports

n Support one CATV output

n Support one HFC optical port

n Support OMCI and TR069 for remote management

n Support Web for local management

n Support Auto-negotiation and MDI/MDIX

n Support the Ethernet interface rate, working mode and flows control

n Support loopback at UNI

n Support packet filtering and anti-illegal message attack protection

n Support performance statistics of Ethernet lines

n Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.

n Support DHCP Option60 reporting the location information of the Ethernet interface

n Support PPPoE+ for accurate subscribers identification

n Support IGMP Snooping

n Support AES-128

n CATV support turn on/off RF output remotely

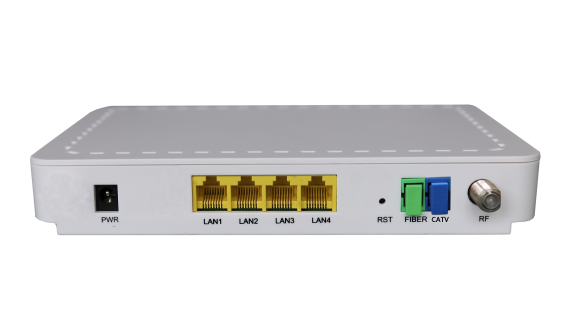

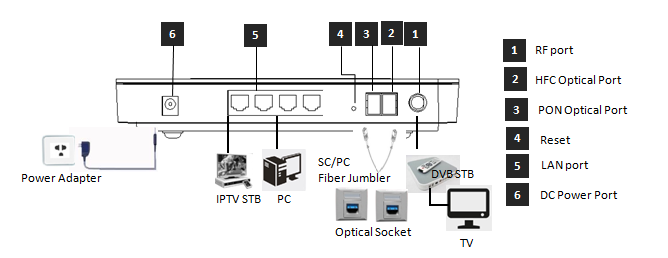

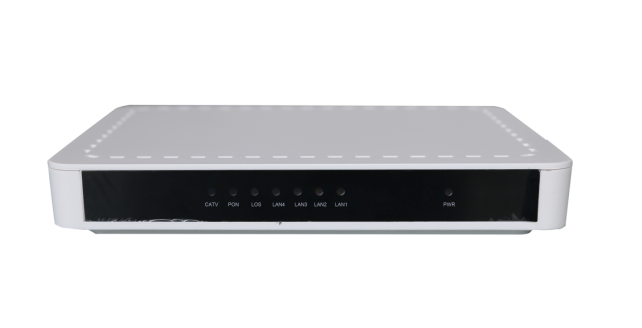

Product interface and LED definitions

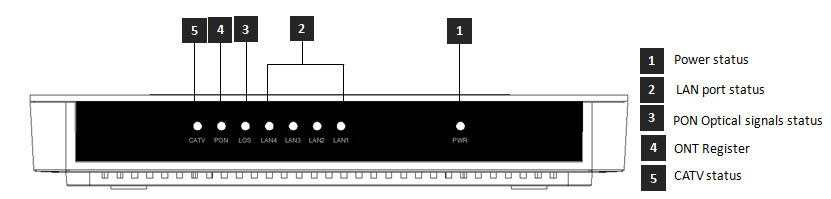

Indicator			Description
1	PWR	Power status	On: The ONT is power on Off: The ONT is Power off
2	LAN1-4	LAN port status	On: Ethernet connection is normal Blinking: Data is being transmitted through the Ethernet port Off: Ethernet connection is not set up
3	LOS	GPON optical signals	On: Optical power lower than receiver sensitivity ; Off: Optical in normal
4	PON	ONT Register	On: Success to register to OLT Blinking: In process of registering to OLT Off: Failed to register to OLT;
5	CATV	CATV status	On：CATV optical normal Off：The CATV signals are not received

Specification

Item		Parameter
Interface	Uplink Interface	1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128
	CATV Interface	1 HFC Optical input SC/APC 1 RF output Female F-Type Connector
	Ethernet Interface	4*10/100Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
	Power Interface	12V DC Power supply
Performance Parameters	PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0～4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125ɥm single-mode fiber
	Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
	Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG，VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection
Network Management	Management Mode	Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management
Network Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Physical Features	Shell	Plastic casing
	Power	External 12VDC/1A power supply adapter Power consumption: <7W
	Dimension and Weight	Item Dimension：200mm(L) x 140mm(W) x 33mm (H) Item weight：0.5kg
	Environmental Specifications	Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 5% to 95%(Non-condensing)

CATV

Item	Parameter	Remark
Wavelength	1550 +/- 10nm
Optical return loss	>45dB
Input optical power	-15dBm～0dBm	MU714GH
	-18dBm～-9dBm	MU714GHL
	-18dBm～0dBm	MU714GHA
RF frequency	47MHz~1000MHz
RF output lever	84dBuV (@-5dBm@85MHz)	MU714GH
	81dBuV (@-10dBm@85MHz )	MU714GHL
	78dBuV (@-12~-2dBm@85MHz)	MU714GHA
CNR	>47dB (@-5dBm@ DS22 Channel)	MU714GH
CNR	>41dB (@-10dBm@DS22 Channel)	MU714GHL、MU714GHA
CSO	>60dBc (@-5dBm@ DS22 Channel)	MU714GH
CSO	>60dBc (@-10dBm@DS22 Channel)	MU714GHL、MU714GHA
CTB	>60dBc (@-5dBm@ DS22 Channel)	MU714GH
CTB	>60dBc (@-10dBm@DS22 Channel)	MU714GHL、MU714GHA
RF output return loss	>14dB	MU714GH
RF output return loss	>12dB	MU714GHL、MU714GHA
RF impedance	75Ohm
AGC function	Support	MU714GHA

Application

² Typical Solution：FTTH,FTTO, PON+EOC

² Typical Business：INTERNET, VOICE, CATV, IPTV, VOD, IP Camera

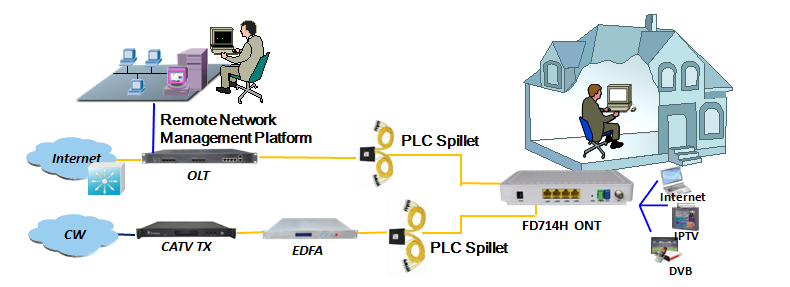

Network Construction

Ordering information

Product Name	Product Model	Descriptions
4GE + CATV GPON ONT	MU714GH	4*10/100/1000M Ethernet interface, 1 GPON interface, 1 HFC Optical interface, Input optical power -15dBm～0dBm, Plastic casing, external power supply adapter
	MU714GHL	4*10/100/1000M Ethernet interface, 1 GPON interface, 1 HFC Optical interface, Input optical power -18dBm～-9dBm, Plastic casing, external power supply adapter
	MU714GHA	4*10/100/1000M Ethernet interface, 1 GPON interface, 1 HFC Optical interface, Input optical power -18dBm～0dBm, support AGC function, Plastic casing, external power supply adapter
