Overview
POE6208P combines a small-high efficiency 4/8-port 10/100Mbps Ethernet switch with a standard 802.3af 4/8-port Power over Ethernet (PoE) capability. The 4/8 - port 10/100 Ethernet PoE Switch incorporates an external 48VDC power adaptor. Each of the PoE Ethernet ports can provide 15.4 Watts of power as well as 10/100M data transmission over the Inter- connecting Ethernet interface such as Cat 5/ 5e /6 cables.
The 4/8-port 10/100 Ethernet PoE Switch enables users to attach IEEE802.3af compliant devices such as wireless Access Points (APS), VOIP phone, IP camera, printer and Network Attached Storage (NAS) directly to the 4/8-port 10/100 Ethernet PoE Switch without requiring additional power on the network. The unit was designed with home and small business users in mind and is ideal for installations where AC power is not available or no cost-effective.
Specification
◆4/8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 4/8-Port PoE function ( port 1 ~ port 4/8).
◆Compliant with IEEE 802.3af specification.
◆Supports PoE power up to 56W (4-port PoE) / 112W (8-port PoE) for all PoE ports.
◆Supports PoE IEEE802.3af compliant Powered Device (PD).
◆Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
◆Full/half duplex transfer mode for each port.
◆Up to 1K unicast address entities per device. Self-learning, and table aging.
◆64KBytes packet buffer.

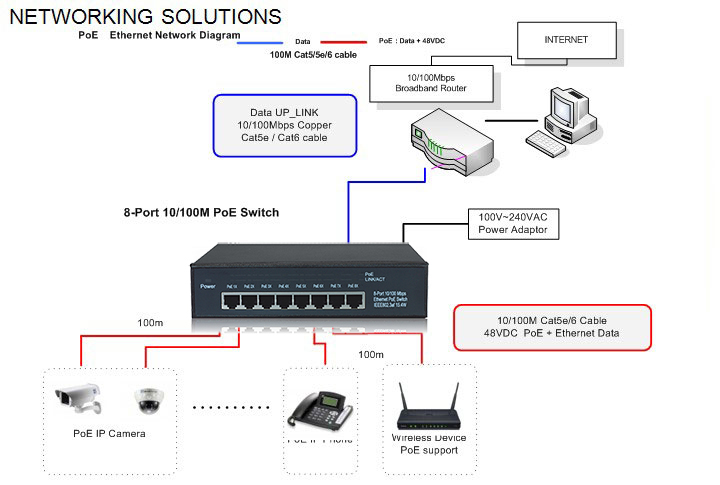

![](/en/uploadfile/201662/2016621549122553851.jpg)
Target Industries
◆HD monitor transmission and power supply
◆Wireless AP layout transmission and power supply
◆Network telephone transmission , intelligent house and home
system
◆Intelligent transportation supervisory system(ITS)
◆ High-speed Way supervisory/Tele-Communication System
◆ Security protection system, TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ High-building Security Protection, Military Tele-Com projects
Order information
POE1000L 5 port 10/100M Ethernet Switch with 4 PoE port
POE2000G 5-Ports Gigabit 10/100/1000M PoE Switch
POE6208P 8-Port 10/100Mbps Switch with 4 / 8 PoE port
POE2008 8-Ports Gigabit 10/100/1000M PoE Switch
POE6209L 8-port PoE switch with 1 100M Up-link port
POE6209G 8-port PoE switch with 1 copper Gigabit port and 1 Gigabit SFP port
POE6216P 16-port 10/100M Ethernet PoE switch
POE6216G 16-port PoE switch with 2 copper Gigabit ports and 2 Gigabit SFP ports
POE6216GW 16-port 10/100M Ethernet Web-Smart PoE switch with 2 copper gigabit RJ-45 ports and 2 gigabit SFP ports
POE6224P 24-Port 10/100M Ethernet PoE Switch
POE6224G 24-port PoE switch with 2 copper Gigabit ports and 2 Gigabit SFP ports
|
