Overview
POE6209L is is an unmanaged 10/100Mbps Ethernet PoE switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 8 10/100Mbps ports and 8 IEEE802.3af Power over Ethernet (PoE) ports for workstation, plus 1 10/100M Up-link port for workgroup and departments.

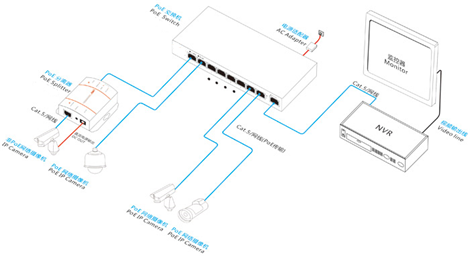

The switch enables users to attach IEEE802.3af compliant devices such as wireless Access Points (APS), VOIP phone, IP camera, printer and Network Attached Storage (NAS) directly to the 8 -ports 10/100 Ethernet PoE Switch without requiring additional power on the network. The unit is designed for home and small business users in mind and is ideal for installations where AC power is not available or no cost-effective.
Feature
◆8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 8-Ports PoE function ( port 2 ~ port 9).
◆1 x 10/100Base_T RJ-45 Up-Link port. (port1)
◆Compliant with IEEE 802.3af Supports PoE power up to 114W for all PoE ports.
◆Supports PoE IEEE802.3af compliant Powered Device (PD).
◆Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
◆Full/half duplex transfer mode for each port.
◆Wire speed reception and transmission.
◆Up to 1K unicast address entities per device. Self-learning, and table aging.
Specification
◆ PoE power on RJ-45：
Power +: ping 3 & ping 6 ; Power –: ping 1 & ping 2
◆ Power Consumption：
5.6 watts ( max with no PD device connected).
120 watts ( 8 PoE ports 15.4W/port).
◆ IEEE802.3AF；IEEE 802.3；IEEE 802.3u；IEEE 802.3x Flow Control；
◆ RAM buffer：2.75Mb bytes per device
◆ MAC address Learning：Automatic update
◆ Protocol: CSMA/CD
◆ Compatible FCC Class B, CE Mark Class B.
◆ Operation Environments
Input: 110-240VAC, 50/60Hz,
Output: 48VDC 2.5A;
Opration and Storage Temperature:
0℃～40℃& -10℃～75℃
Humidity:
5%～95% (no condensation)
Dimenssion:
197mm W x 110mm D x 25mm H.
Target Industries
◆HD monitor transmission and power supply
◆Wireless AP layout transmission and power supply
◆Network telephone transmission , intelligent house and home
system
◆Intelligent transportation supervisory system（ITS）
◆ High-speed Way supervisory/Tele-Communication System
◆ Security protection system, TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ High-building Security Protection, Military Tele-Com projects
Order information
POE1000L 5 port 10/100M Ethernet Switch with 4 PoE port
POE2000G 5-Ports Gigabit 10/100/1000M PoE Switch
POE6208P 8-Port 10/100Mbps Switch with 4 / 8 PoE port
POE2008 8-Ports Gigabit 10/100/1000M PoE Switch
POE6209L 8-port PoE switch with 1 100M Up-link port
POE6209G 8-port PoE switch with 1 copper Gigabit port and 1 Gigabit SFP port
POE6216P 16-port 10/100M Ethernet PoE switch
POE6216G 16-port PoE switch with 2 copper Gigabit ports and 2 Gigabit SFP ports
POE6216GW 16-port 10/100M Ethernet Web-Smart PoE switch with 2 copper gigabit RJ-45 ports and 2 gigabit SFP ports
POE6224P 24-Port 10/100M Ethernet PoE Switch
POE6224G 24-port PoE switch with 2 copper Gigabit ports and 2 Gigabit SFP ports
|
