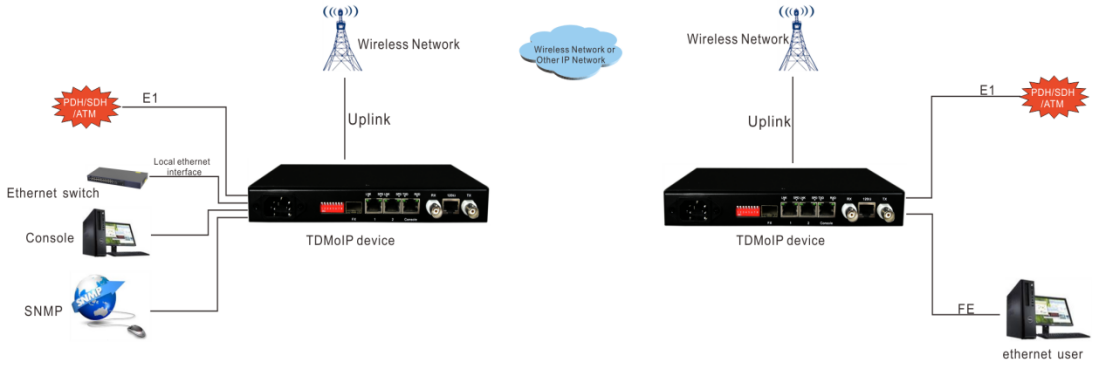

MTD-301 is mainly used to transmit E1 interface over IP network. It has 1E1 interface, 2 UTP Ethernet port and 1*fiber Ethernet port. TDMoIP-1E can connect TDM device and user’s low cost wireless or lineate Ethernet/IP configuration, without affecting the quantity. assures connecting to physical E1 interface of any device seamlessly, such as PBX, mobile base station, SS7 signaling device and voice mail system. It can be used in the communication system based on E1, such as LAN, WAN, MAN and wireless network.

     Providing emulation E1 channel through Ethernet, the difficulty is rebuilding timing information of E1 code stream effectively at the exit of network. The special disadvantages of Ethernet itself, such as random packet delay, without effective timing transmit mechanism, transmission error or collision that brings on packet lose, must be conquered. Our company resolves the difficulties above faultlessly through availing ourselves of technical advantage and adapting advanced clock disposal technology. TDMoIP-1E encapsulates the date of E1 code stream to the packet and transmits it to the remote device through Ethernet.
