MDO-15 Rackmount PDH Multiplexer

Product description

Overview
MDO-15 Rackmount PDH Mutilizes rack configuration to increase spatial utilization ratio and improves the performance of network management system. 4/8/16E1, and dual 4E1 and 4/8/16E1+10/100M Ethernet slots can be inserted hybridly, offering users a more convenient, effective and quicker way to establish and manage the whole networks in the point-to-point networking . Each slot has the same functions like 4/8/16×E1 or 4/8/16E1+10/100M Ethernet terminal transceiver(desk-top) .Therefore, they can be mutually exchanged and used to build up point-to-point and point-to-multipoint networks with small transportation volume, large net cell number, high reliable and perfect auxiliary functions, such as military, mobile, telecom, electric power, road and airline point-to-point and point-to-multipoint private wire networks.

Features
　◆ One rack offers up to 16 slots supports 16~32 different optic directions
◆ Each slot offers 4/8/16 E1 or 4/8/16E1+10/100M Ethernet or double 4E1 interfaces
　◆ 1 network management and office telephone slot (optional)
◆ exquisite figure，4U 19″ standard rack，space saving
　◆ E1 Line code: compliant to G.703, E1 interface adopt digital phase locked and clock extracted technique
　◆ efficient office service，one office port in In-station side supports office session from 32 different directions and can be switched at any time
　◆ Local/Remote monitor can be switched at any time, alarm statuses are clear at a glance and debugging and fault detecting can be conveniently done
　◆ All setting can be done by tunable switch on the panel quickly and directly

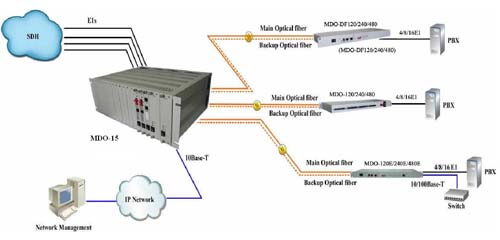

Typical Application

Network Management Modular of the Optical Multiplexer Chassis
MDO-NMS，Network Management Modular of the Optical Mutilexer Chassis, provide 1RS232 serial port and 1 Ethernet port；we can get the infomation of all the modulars and the terminal stand alone devices via the intergrated software。
	Network Managemetn Modular MDO-NMS
MDO-NMS NMS Modular
MDO-NMS NMS Modular	1RS232 serial port,RJ45 connector，data rate wiht 57600； 10/100M Ethernet ports, compatible with IEEE 802.3 standard, auto MDIX The intergrated software to check and control the serial modulars Smaller structure and operate easily
4/8/16E1 Service Modulars with Single/Dual Optical
4/8/16E1, and dual 4E1 with single/dual optical port slots can be inserted hybridly，MDO-M120/M240/M480 and MDO-MDF120/MDF240/MDF480；we can provide bases the customer requires.

	4E1 Modulars with sigle/dual optical port,MDO-M120(MDF120)
MDO-M120/MDF120 4E1 Modulars
MDO-M120/MDF120 4E1 Modulars	Single/Dual FC optical port is optional； 4E1，75 ohm unbalanced or 120 ohm balanced impedance is optional； Alarm indicators indicate the work status; Smaller structure and operate easily
	8E1 Modulars with sigle/dual optical port,MDO-M240(MDF240)
MDO-M240/MDF240 8E1 Modulars
MDO-M240/MDF240 8E1 Modulars	Single/Dual FC optical port is optional； 8E1，75 ohm unbalanced or 120 ohm balanced impedance is optional； Alarm indicators indicate the work status; Smaller structure and operate easily
	8E1 Modulars with sigle/dual optical port,MDO-M480(MDF480)
MDO-M480/MDF480 16E1 Modulars
MDO-M480/MDF480 16E1 Modulars	Single/Dual FC optical port is optional； 4E1，75 ohm unbalanced or 120 ohm balanced impedance is optional； Alarm indicators indicate the work status; Smaller structure and operate easily
4/8/16E1+10/100M Ethernet Service Modulars with Single/Dual Optical
4/8/16E1+10/100M Ethernet with single/dual optical port slots can be inserted hybridly，MDO-M120E/M240E/M480E and MDO-MDF120E/MDF240E/MDF480E；we can provide bases the customer requires.

	4E1+10/100M Ethernet Modulars with sigle/dual optical port, MDO-M120E/ MDF120E
MDO-M120E/MDF120E 4E1+10/100M Modulars
MDO-M120E/MDF120E 4E1+10/100M Modulars	Single/Dual FC optical port is optional； 4E1，75 ohm unbalanced or 120 ohm balanced impedance is optional； One Ethernet auto 10/100Mbps, full/half duplex, MDIX etc.; Alarm indicators indicate the work status; Smaller structure and operate easily
	8E1+10/100M Ethernet Modulars with sigle/dual optical port, MDO-M240E/ MDF240E
MDO-M240E/MDF240E 8E1+10/100M Modulars
MDO-M240E/MDF240E 8E1+10/100M Modulars	Single/Dual FC optical port is optional； 8E1，75 ohm unbalanced or 120 ohm balanced impedance is optional； One Ethernet auto 10/100Mbps, full/half duplex, MDIX etc.; Alarm indicators indicate the work status; Smaller structure and operate easily
	16E1+10/100M Ethernet Modulars with sigle/dual optical port, MDO-M480E/MDF480E
MDO-M480E/MDF480E 16E1+10/100M Modulars
MDO-M480E/MDF480E 16E1+10/100M Modulars	Single/Dual FC optical port is optional； 16E1，75 ohm unbalanced or 120 ohm balanced impedance is optional； One Ethernet auto 10/100Mbps, full/half duplex, MDIX etc.; Alarm indicators indicate the work status; Smaller structure and operate easily
