Overview
MOD-RS/G Industrial RS232/485/422Fiber Modem Converts the electrical signal into optical signal for transmission over fiber optic cable. It not only resolves the contradiction between communication distance and communication data rate, but also resolves the difficulties of electromagnetism molestation, geographical surroundings molestation and so on, which greatly improves the reliability and security of the data communication.
Features
¡¡¡ô RS-232 or RS-485 or RS-422 ports can be chose;
¡ô 1.5KV static protecting and 600W/ms lightning protecting;
¡¡¡ô Indicators: PWR, TX, RX
¡¡¡ô Industry standard design and metal shell
¡ô Connector: 9ways industrial terminal block
¡ô RS-232 interface: TX, RX, GND
¡¡¡ô RS-485 signal flow auto identify, 0~115.2Kbps autoadapted;
Specifications
¡ô RS-232 interface: DB9 hole£¬TX¡¢RX¡¢GND tri-ring RS-232 interface
¡¡¡ô ST¡¢SC¡¢FC optic port are selectable
¡ô Power£ºDC9-30V/AC220V/DC-48V
¡ô Current£º<300mA
¡ô Data rate£º0~115.2Kbps auto-negotiation
¡ô Fiber£ºSM 9/125¦Ìm£¨MM 62.5/125¦Ìm or 50/125¦Ìm£©
¡ô Wavelength£º1310nm£¨850nm£©
¡ô Transmitting power£º-8.5dbm(-15dbm)
¡ô Receiving sensitivity£º-38dbm(-32dbm)
¡ô Distance£º2¡¢5¡¢20¡¢40¡¢100km
¡ô Rate of fault code£º¡Ü10-9
¡ô Operating temperature£º-20¡æ ~ 70¡æ
¡ô Humidity£º5%~95% (non condensation)
¡ô Size£º120mm¡Á90mm¡Á50mm
¡ô Weight£º0.5kg

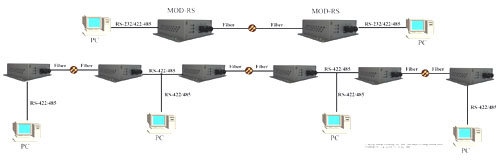

Typical Application
Order information
MOD-RS/G Industrial RS232/485/422 Fiber Modem, 20Km,SM
MOD-RS RS232/485/422 Fiber Modem, 20Km,SM
MOD-PRS Passive RS232 Fiber Modem,20Km,SM
¡¡ MOD-FE1¡¡ FE1 Fiber Modem,20Km, SM
¡¡ MOD-V35¡¡ V.35 Fiber Modem, 20Km, SM
......
|
