Overview
MEO-100 Ethernet Fiber Modem provides 64K~2M bandwidth data transmission channel for Ethernet over fiber optic cable, it is suitable for many situations, such as LAN expansion, networks isolation, WAN access, it can connect Ethernet to telecom transmission network, special network or WAN.
Features
◆ Fully compatible with IEEE 802.3 VLAN and over long-distance frame transmission
◆ DHCP packet filtering function can be enabled/disabled
◆ Inside 32Kbyte MAC address memory space in the device, it can be learn MAC address and refresh the list automatically
◆ Inside up to 16Mbit register, features high data store-and-forward capability
◆ Offer an Ethernet interface 10/100M, full/half duplex auto-negotiation
◆ Data rate N×64kbps (N=1~32) is adjustable
◆ Two clock modes are selectable
◆ Ethernet port can transmit VLAN tag
◆ Support MDI/MDI-X Ethernet interface modes
◆ Support VLAN function of interface
◆ The circuit is designed simply, the device works steadily
Specifications
1、Ethernet Port
Interface: 10/100Base-T
Electric characteristic: comply with IEEE 802.3 standard
Data rate of interface: 10/100M auto-negotiation
Connector: RJ-45 interface
2、Optical port
Data rate: N×64Kbps (N=1~32)
Wavelength: 1310nm/1550nm
Transmission distance: 40km/60km/80km/120km (selectable)
Line code: 1B1C
Output power：>-12dbm
Receiver mode: PINFET
Connector: FC, SC, ST
Degree of receive: ：<-36dbm
Light type: LD
Fiber connector: FC(standard)/SC(selectable)
Fiber interface: dual-strand(standard)/single-strand(selectable)
3、Clock Mode Internal clock (default)/ Line clock
4、Power Supply Voltage: AC 220V / DC﹣48V
5、Power consumption: ≤5W
6、Environment Operating temperature: 0℃～50℃
7、Storage temperature:﹣40℃～﹢70℃
8、Relative humidity: 5%～95%, non condensation
9、Weight 0.4Kg
10、Size: 212mm(W)×150mm(L)×38mm(H)

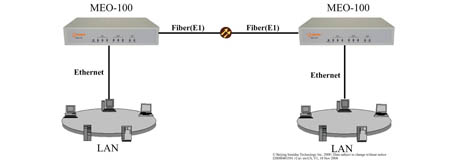

Typical Application
|
