Overview
MER-132F is a high performance and self-learning long distance RS232 converter that could point-to-point transfer data from E1 channels to DB25 interfaces. It is compact in size and low in cost and suitable to cost effective bridging application. it works under the RS232 data networks. China has an extensive resource in N*64KbpsE1 channels and so this product is widely used in network connection.
Features
＃ Support 1* RS232 data interface
＃ Support 1* FE1 interface
＃ WAN line data rate: N*64Kbps,N=1~32
＃ Line code: HDB3
＃ Timing mode is selectable: Internal oscillator (default), Line clock derived from the receive signal
＃ Internal power supply
＃ Data connector: DB25
＃ Type: standalone
Specifications
1、E1 Port
Jitter: comply with G.742 and G. 823 standard
Data rate: N*64KKbps,N=1~32
Electric characteristic: comply with ITU-T G.703,G.704 standard
Line code: HDB3
Interface impedance: 75Ω(BNC)/120Ω(BALANCE)Connector: BNC(75Ω)/RJ45 (120Ω)
2、Data port
Data rate: 115.2Kbps
Connector: DB25
Electric characteristic: comply with RS232 standard
3、Size: 205mm(L)〜145mm(W)〜41mm(H)

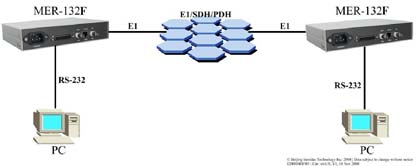

Typical Application
|
