Overview
MEV-LR FE1/V.35+RS232+Eth interface converter support the conversion between E1(N*64K) interface which accord with the ITU-T G.703 standard and V.35 interface. It can realize the function of MEV-LR enhanced interface converter. It can receive synchronous data of 2.048Mbps from E1 network, and transmit the data to ROUTER or other devices. The mode of interface is DCE, and it can be connected with DTE or DCE devices. Features
﹛↑ Adopting HDB3 line code
﹛↑ Fully compatible with ITU-T V.35, G.703, G.704 standard
﹛↑ E1 and V.35 interfaces can realize internal loop
﹛↑ Line rate: N*64Kbps, N=(1~31)
﹛↑ Frame format: frame
﹛↑ E1 line code: compliant with ITU-T V.35, G.703, G.704
﹛↑ E1 channel support 75次/120次 impedance
﹛↑ Full LED indicators show working status
﹛↑ V.54 diagnose, can realize analog and digital looping test
﹛↑ V.35 interface supporting hot plug/unplug
﹛↑ Timing mode is selectable:
﹛↑ Internal oscillator (default)
﹛↑ External from the DTE
﹛↑ Line clock derived from the receive signal
﹛↑ Power supply are selectable in -48V/ 220V
﹛↑ Standalone and 19 inches chassis are selectable
Specifications
1﹜E1 Port
﹛Data rate: N*64Kbps, N=(1~31)
Line code: HDB3
Impedance: 75次( BNC)/120次(balance) auto-negotiation
Electric characteristic: comply with ITU-T G.703 standard
Connector: BNC (75次), RJ-45 (120次)
Jittering: comply with G.742 and G. 823 standard
Frame format: frame, comply with G.704 standard
2﹜V.35 port
Data rate: N*64Kbps, N=(1~31)
Interface Mode: DCE male
Interface connector: DB25 connector, DCE or DTE are selectable
Electric characteristic: comply with ITU-T V.35 standard
3﹜Timing mode: Line clock and Internal oscillator of G.703
4﹜Power supply Voltage: -48VDC or 220VAC㊣20%
5﹜Environment Working temperature: 0∼C~50∼C
6﹜Size: 212mm(W)℅150mm(L)℅38mm(H)

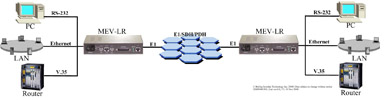

Typical Application
 |
