Overview
16 Slots Protocol Converter Rack Module, it can be installed in the standard 19-inch 4.5U standard rack, can hold 16 Converter modules and or 15 Converter modules+one Agent module, every module can work independently, different type of modules can be mixed into the same rack, this system is safe and reliable.
Features
＃ 19-inch 4.5U standard rack, can be installed in the cabinet directly, easy to manage and maintain
＃ the most capability are 16 Media Converter modules
＃ Support three interfaces: E1/V.35, E1/10BaseT, FE1/V.35
＃ Dual power supplies backup, 220V AC / 48V DC are selectable
＃ Completely comply with the requirements of telecom level operations, with average no-failure time more than 50,000 hours
＃ Perfect ventilating and heat-emitting design, which ensure the operation of the system
Specifications
1、Max power parameter of the interface converter card DC5V/1A(5W)
2、Max number of modules 16 modules
3、Max power parameter of the output 100W
4、Max amount of the power Media Converter modules 2 modules
5、Operating temperature: 0≧゛50≧
6、Storage temperature: -40≧゛+70≧
7、Relative humidity: 5%゛95%, no condensation
8、Size: 174mm(H) x 483mm(W)X 285mm(D)

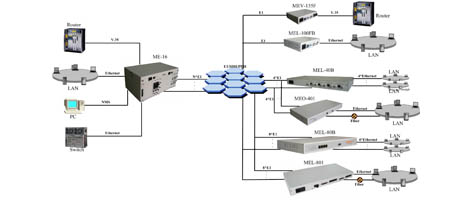

Typical Application
|
