Overview
RCM 2630(F) was research and development by Beijing Inmidas Technology Co.,Ltd, which design for transferring Ethernet, voice multiplexing. It meets G.704, IEEE802.3 and voice relevant international norms.
RCM 2630(F) provides 1* Ethernet interface, 30 telephone interfaces via one E1 channel or fiber line. The advanced technic of RCM 2630(F) can ensure the stability of data transmission and high-quality voice. It makes the investment to build a network reduced much and the structure of the network simplified.
RCM 2630(F) will be applied widely in fields of telecom, finance, military, electricity, transportation, government and so on, and it has a promising future. Features
◆E1 or fiber optical transmit channel optional.
◆Support 1*Ethernet interface;
◆Support 30 voice interface, which can be changed to 2/4 w audio,4W E&M etc;
◆Power support 220VC or -48VDC is optional
Specifications
RCM 2630 E1 port attributes
Attribute
|
Description
|
| Rate |
2.048Mbit/s±50ppm |
| Code |
HDB3 |
| Impedance |
75Ω（un-balanced） |
| Standard |
G.704、G.823 |
| Connector |
BNC |
RCM 2630F fiber optical attributes
Attribute
|
Description
|
| Connector |
SC or FC optional |
| Wavelength |
850nm /1310nm /1550nm |
| Receiver Sensitivity |
≤-36dBm |
RCM 2630(F) Ethernet port attributes
| Attribute |
Description
|
| Connector |
RJ45 |
| Rate |
10/100Mbps |
| Standard |
IEEE802.3 |
RCM 2630(F) voice port attributes
| Attribute |
Description
|
| Connector |
RJ45 |
| Definition |
FXO/FXS,4W E&M, 2/4 W audio etc |
| Port number |
30 |

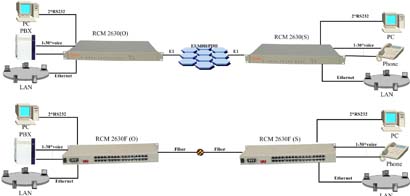

Typical Application
Order information
RCM 2630 E1(75ohm) uplink; 1×10/100M port、30×FXO/S voice port,ACor DC
RCM 2630F Fiber optical uplink; 1×10/100M port、30×FXO/S voice port,ACor DC |
