Overview
GCM 1600 Gigabit Ethernet Voice Broadband multiplexing optical transmission equipment is a new data & voice multi-service optical Multiplexer,It can provide a 16- line voice interface directly upon the optical transmission channel, and at the same time a 1000M line Ethernet data interface via 2* SFP optical ports. Voice Broadband multiplexing optical transmission equipment is mainly used in implementing connections between telephones and SPC exchanges through transmission network, as well as providing various kinds of data operation interfaces.
Features
¡¡¡ô Upward interfaces port is 2*SFP insert slots optional to reach 1+1 service protection
¡¡¡ô Provide 16*Voice interface, the PSTN port can be changed to 2/4 w audio,4W E&M etc,
¡¡¡ô Provide 1*1000M Ethernet interface
Specifications
GCM 1600 SFP slot attributes Attribute
|
Description
|
| Bit rate |
1.25Gbps |
| Connector |
SFP/LC |
GCM 1600 Ethernet port attributes | Attribute |
Description
|
| Connector |
RJ45 |
| Rate |
1000Mbps |
| Standard |
IEEE802.3 |
GCM 1600 voice port attributes | Attribute |
Description
|
| Definition |
FXO/FXS, 2/4W audio, 4W E&M, etc |
| Port number |
16 |

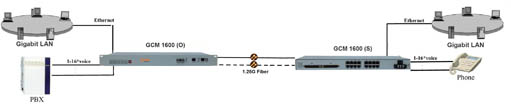

Typical Application
Order information
¡¡ GCM 1600-O 2* SFP Slots,1¡Á1000M port,16¡ÁFXO voice port is optional
¡¡ GCM 1600-S 2* SFP Slots,1¡Á1000M port,16¡ÁFXO voice port is optional
GCM 1600/AC 220VAC
¡¡ GCM 1600/DC -48VDC
......
|
